Asset Tracking
The Assets page allows you to track and monitor your assets. It has sub modules such as Assets, History, GeoFence, Poi and Directions

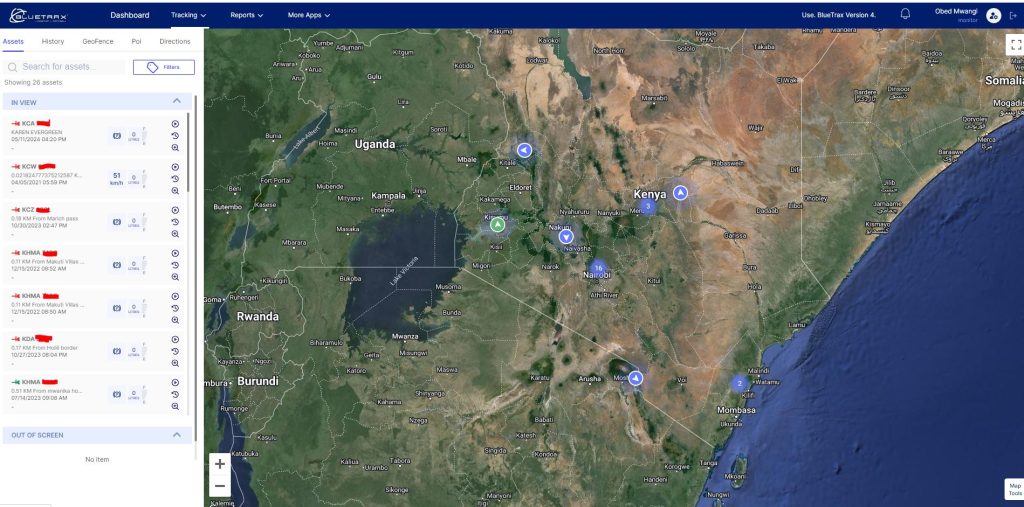

Track Your Assets
This module allows you to view your assets location as well as analyse movement
The Asset list allows you to view all your assets. You can easily search for any asset by typing part or all of the registration number at the search bar at the top

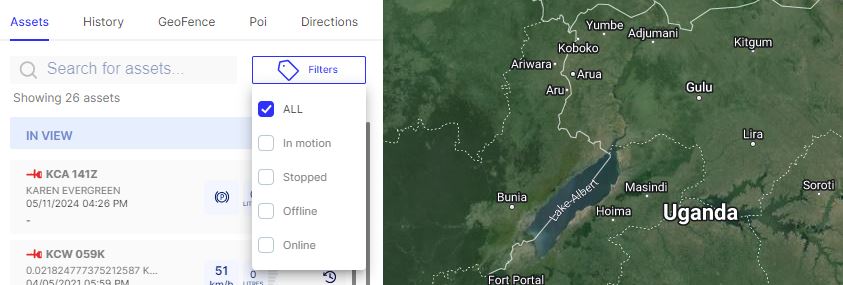

Filter Assets
You can filter assets by clicking the filter button at the top of the list

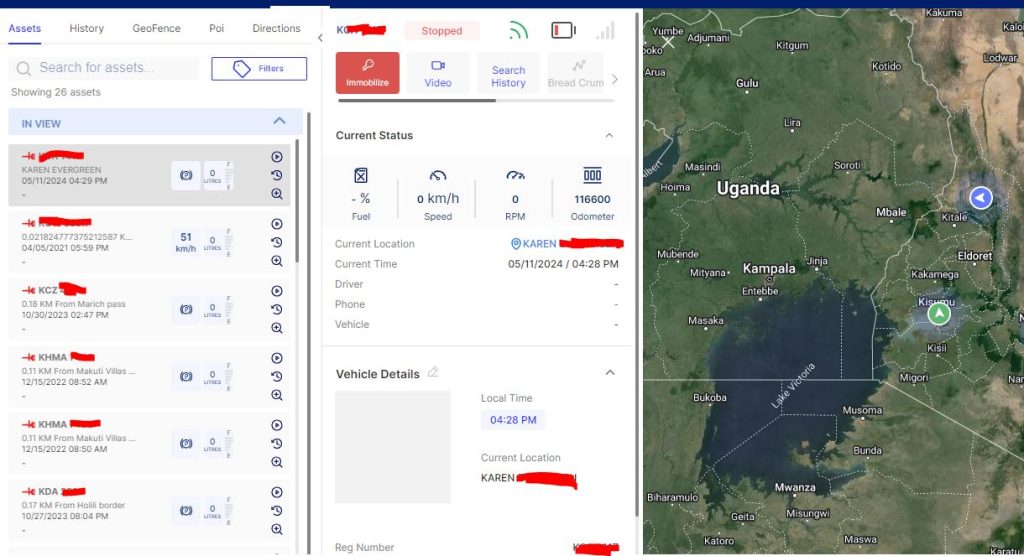

Expand Details
You can view mode details about an asset by clicking the asset name. This expand a card that pops up on the right.
This card provides a lot of information related to the asset and the tracking device
Asset Icons
Against each asset, various icons convey different information: Against each asset, various icons convey different information. Below is a description of the functions of each of the icons
Asset Icons
Against each asset, various icons convey different information:
The key icon on the left of the asset name (labeled 4) represents ignition status. A red key signifies ignition off, while a green key indicates ignition on. Note that this applies when the ignition is on but the vehicle is not moving.
The “P” icon at the right of the asset name represents parked status. It switches to displaying speed when the asset is moving.
The liters icon next to the “P” icon represents the fuel level in the asset.
The icon at the top of the last three icons (labeled 1) allows you to live track the asset, enabling close monitoring of its movement with no other assets on the screen.
The second icon (labeled 2) enables quick generation of a history report for that asset. Click on the icon, select the date range, and load the report.
The last icon (labeled 3) allows you to zoom in to the location of the asset. Note that zooming in does not remove other assets from the screen.
